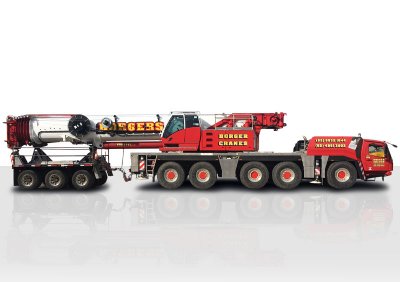

Unit 290 - Grove GMK5250XL-1 - All Terrain Mobile Crane - 250 ton

home / crane fleet / 250t Grove GMK5250XL-1

The Grove GMK5250XL-1 is an all round general hire crane. Able to fit into some tight sites where truck cranes use to operate.

This crane has 78.5m of main boom and an 12-37m inserts available. Giving the GMK5250XL-1 a dominant lifting range on any site / project.

High capacities on a 5 axle AT crane with 78.5 m main boom
Max tip height: 109m

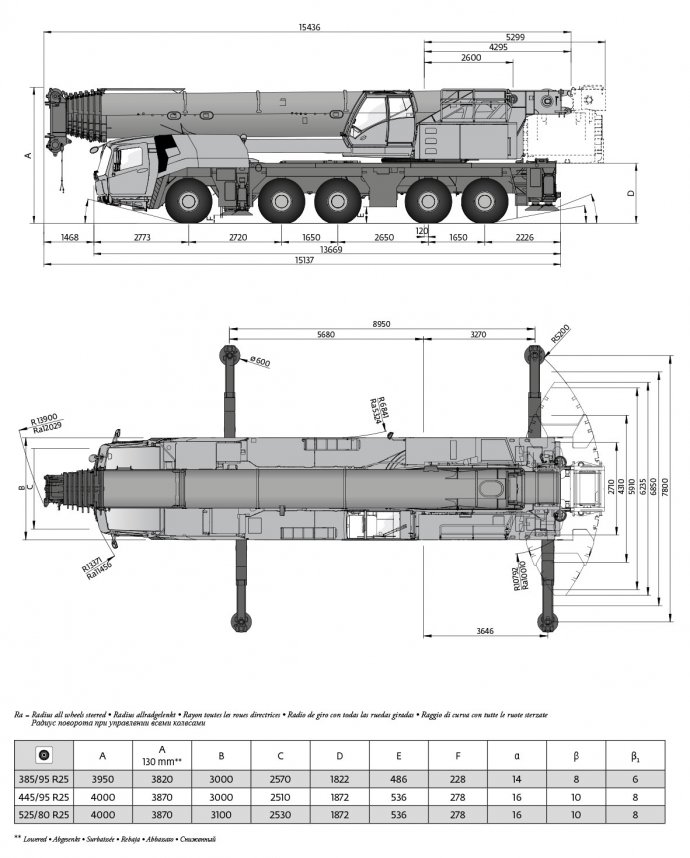

Running Gear 5 Steerable Axles
Length 15.436m
Width 3.10m
Height 4.00m
Outrigger Footprint: 8.95m x 7.80m - 4 point support
Counterweight: up to 80 tons
