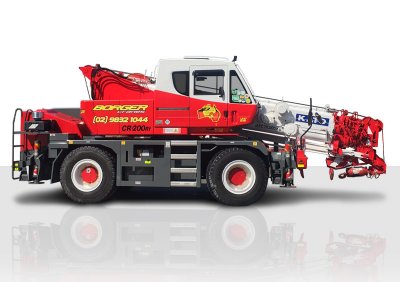

Unit 619 - Kato City Crane - 20 ton

home / crane fleet / 20t Kato City Crane

The second smallest slewing mobile crane in the fleet. Able to keep up with 30t truck cranes in many areas.

Able to access small sites / restricted setup areas. Has the ability to work + mobile on rubber. A versatile crane for the small end of the market.

Telescopic Boom Size: 6.5m to 28m + 5.8m jib extension.

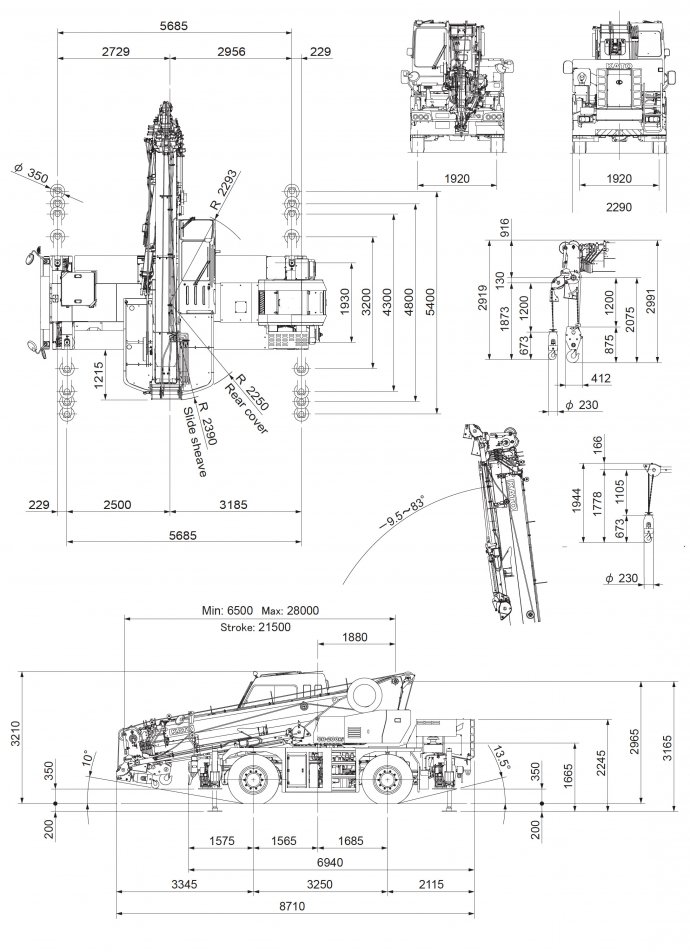

Carrier Dimensions
Length: 8.71m
Width: 2.29m
Height: 3.21m
Outrigger footprint: 5.4m x 5.685m
Max tip height: 34.8m
