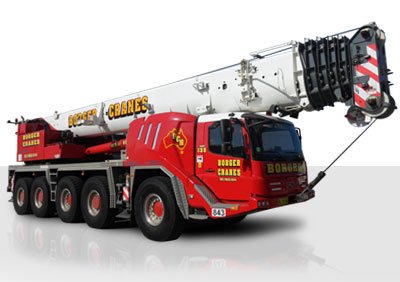

Unit 135 - Grove - GMK 5130 - All Terrain Mobile Crane - 130 ton

home / crane fleet / 130t Grove All Terrain

The Grove GMK 5130 is an all round general hire crane. Able to fit into some tight sites where truck cranes use to operate.

This crane has 60m of main boom and an 18m fly and needle as standard, with an additional 14m insert available. Giving the GMK 5130 a dominant lifting range on any site / project.

Boom Size 12.9m - 60m
With fly and needle 11m to 32m available
Max tip height: 95m
Running Gear 5 Steerable Axles

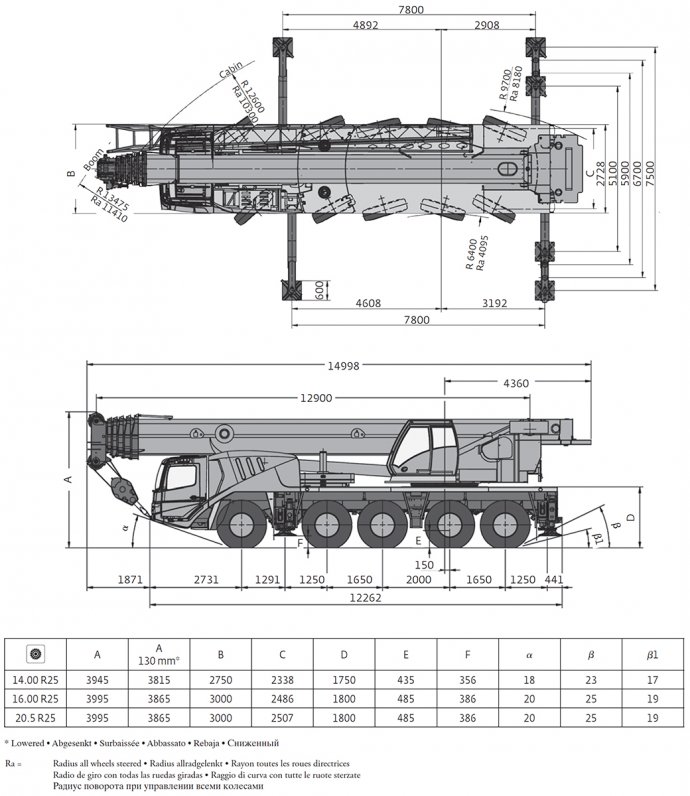

Length 14.090m
Width 2.75m
Height 3.91m
Outrigger Footprint: 8m x 7.5m - 4 point support
Counterweight: up to 40.1 tons
