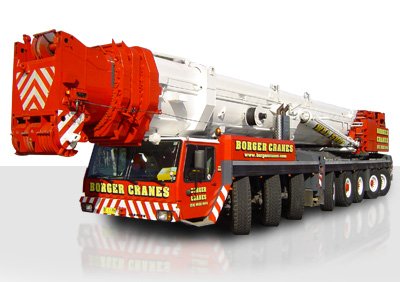

Unit 500 - Liebherr - LTM 1500-8.1 - All Terrain Mobile Crane - 500 ton

home / crane fleet / 500t Liebherr All Terrain

The Liebherr LTM 1500-8.1 is a class leading crane. With outstanding lift capabilities across a broad spectrum. The only 500t crane in NSW on the road, a step ahead of the rest.

Boom: 16.1m - 50m
Auxiliary Equipment
4-Guy Superlift, Up to 91m of Luffing Fly (with or without inserts), Up to 63m of Fixed Fly (with or without inserts)
Running Gear 8 Axles with 6 Steerable Axles

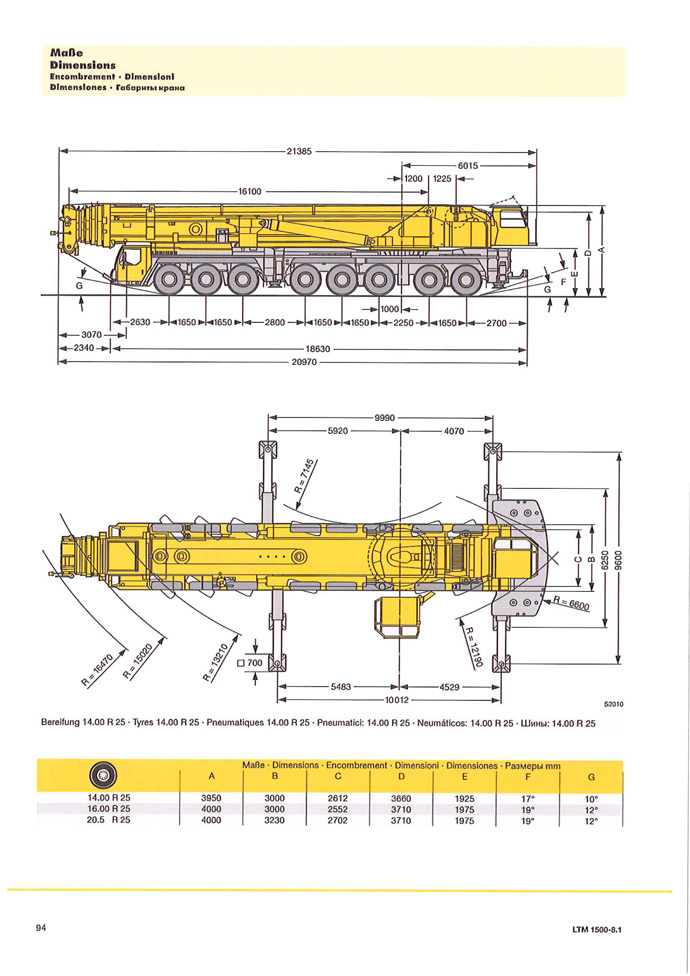

Length: 21.385m
Width: 3.000m
Height: 4.000m
Outrigger Footprint: 10m x 10m - 4 point support
Counterweight: 15t to 165t
Max tip height: 148m
